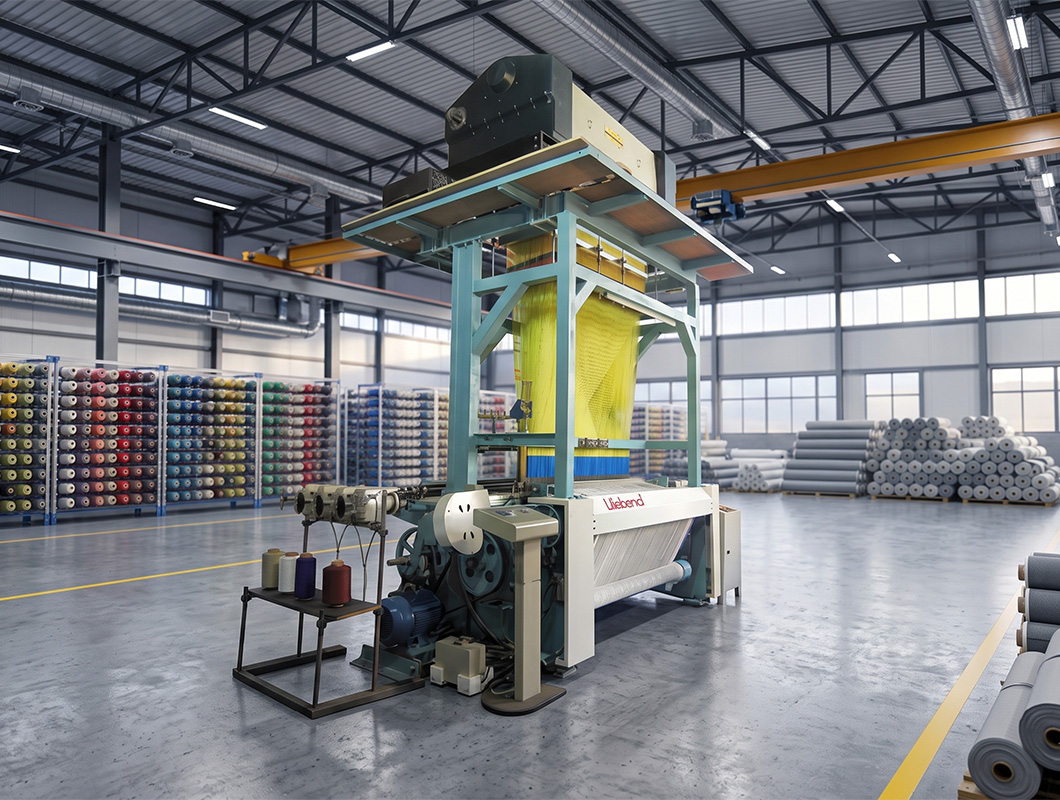

Cam Type Rapier Loom offers efficient weaving, precise weft insertion, stable operation, high productivity, versatile fabric production, and consistent quality.
Designed for precision, efficiency, and consistent fabric quality, delivering reliable performance across demanding weaving applications.
| Machine Type | Cam Type flexible Tape Rapier Weaving Machine |
|---|---|
| Nominal Width | 1500 / 1600 / 1900 / 2300 |
| Performance | Up to 325 Picks Per Minute. Up to 520 m/min of Weft Inserted |
| Weft Insertion Speed | Above 380 mpm. ATUFS APPROVED |
| Fabrics Produced | Fabrics with Natural, Artificial, Synthetic & Blended Yarns. |
| Weft Color Selector | 6 or 8 color Jacquard Lift Selector, Electronic. |
| Weft Feeder | Electronic Weft Feeder. |
| Weft Insertion | Rapier mounted on flexible tapes, guided by hooks. |
| Tape Drive | Via positive device wheels driven by a coupled cam unit mechanism. |
| Sley | Driven by positive coupled cam units. |
| Picks Per cm | Standard setting from 4 to 84 Picks/cm. |
| Weft Density | From 5 to 150 Picks/cm. |
| Warp Let-off | Motorised positive let-off with electronic control, with fabric regulator. |
| Shed Mechanism | Cam (max. 12 frames); electronic rotary dobby 20 shaft; electronic Jacquard with universal joint device. |
| Selvedges | Leno with 2 or 4 binding threads; heat-sealed for synthetic yarns; lateral and central tuck-in devices. |
| Weft Control | High sensitivity piezo-electric detector with double weft control. |
| Warp Control | Electric warp stop motions with 6 to 8 rows. |
| Cloth Roll | Quick release take-up roller up to 550 mm in diameter. |
| Lubrication | Central lubrication, let-off device and fabric regulator in oil bath. |
| Waste Device | Mechanical waste selvedge drawing device with waste disposal. |
| Main Drive | Rated 3.5 kW three-phase motor. |
| Machine Control | Microprocessor control device controlling mechanical functions. |
