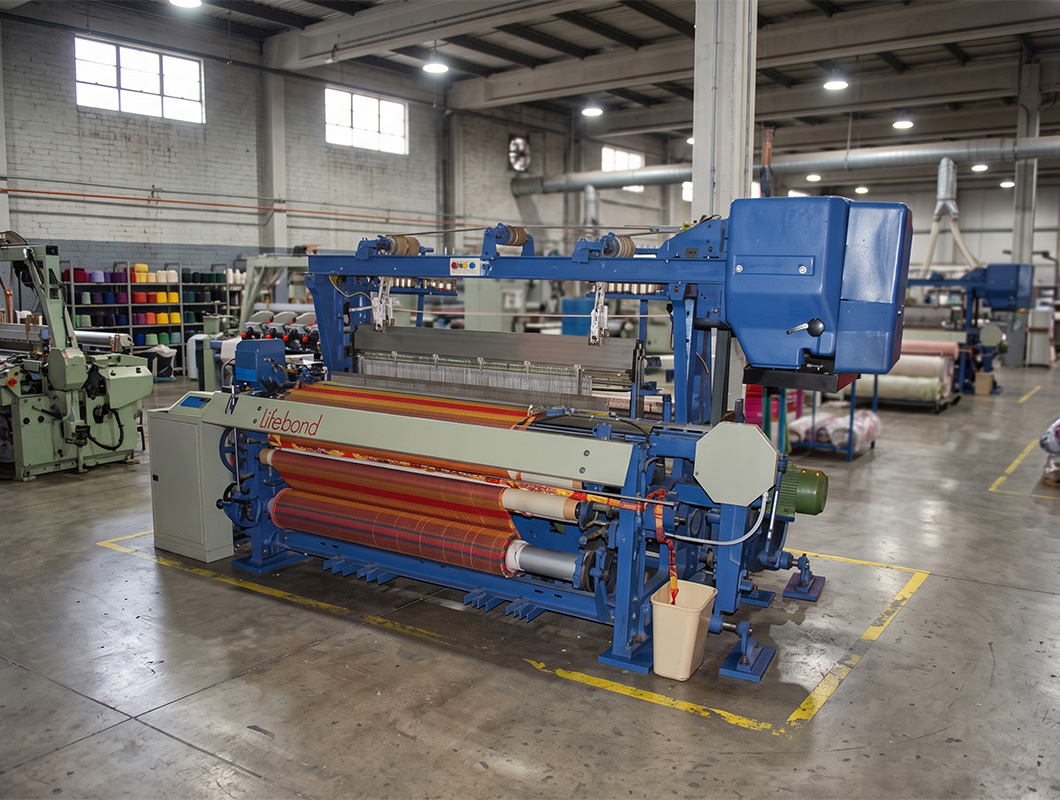

Rapier loom with dobby shedding system, designed for precise pattern weaving, consistent fabric quality, flexible production, and efficient operation.
Rapier loom designed to weave without vibration at high speeds. It has capacity for light as well as medium to heavy fabrics and is powered by a 2 H.P. 3-phase electric motor with Electro Magnetic Brake.
| Reed Width (cms) | 160, 168, 178, 183, 305 |
|---|---|
| Cloth | Suitable for Fine, Medium & Heavy Fabrics From Cotton, Polyester, Silk, Wool, Acrylic, Rayons, Nylon and Fancy Yarns. |
| Weft Insertion Speed | Above 380 mpm. ATUFS APPROVED |
| Weft Selection | 8 Colour Pick and Pick with Programmable Microprocessor Based weft Presenter / Mechanically Possible by Dobby. 8 Colour Pick and Pick by Dobby / 8 Colour electronic with programmable microprocessor based weft presentor |
| Shed Formation | Cam Dobby. |
| Beam | Flanged Beam Upto 17" Diameter. |
| Fabric Storage | 400mm Dia. |
| Weft Stop Motion | Piezo electric |
| Warp Detection | Dropper type 6 rows |
| Selvage | Magnetic Leno With Bobbin Stand. |
| Selvage Cutter | Thermal (Mechanical Cutter Optional) |
| Temple | Ring Type Cylinder with Pin. |
| Let-Off | Semi Positive Let-Off System Controlled by Feeder Roller / Servo Drive |
| Take Up | Adjusted According to weft Density of the Cloth by Pick Wheels / Servo Drive |
| Driving | Electric Motor with electromagnetic brake |
| Weft Feeder | Bobbin Stand Through Weft Accmalators Available. |
| Lubrication | Grease Pump |
| Power | 1.5kw to 3.7kw as per width of machine |
