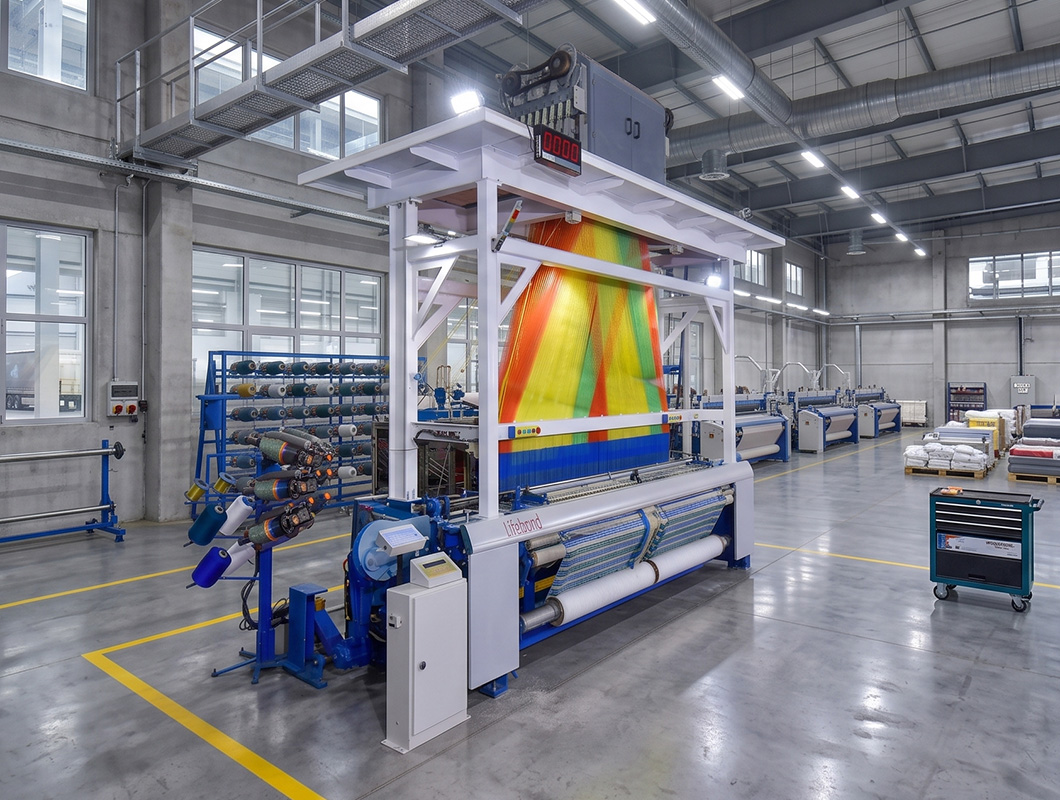

High-speed rapier weaving machine designed for electronic jacquard, delivering precise patterns, superior fabric quality, and efficient production.
Designed for precision, efficiency, and consistent fabric quality, delivering reliable performance across demanding weaving applications.
| Reed Width (cms) | 160, 168, 178, 183, 305 |
|---|---|
| Speed RPM | 180 - 270 (speed as per width) |
| Take Up | T wheel / servo drive |
| Weft Insertion Speed (mpm) | Above 380 mpm. ATUFS APPROVED |
| Weft Selection | 8 colour Jacquard lift / 8 colour electronic selector (optional) |
| Stop Control | Warp Brake, Weft Brake, Over Tension. |
| Let - Off | Semi Positive Controlled By Feeler Roller / servo drive |
| Weft Selector | 6 Colour Weft Selection By Jacquard. |
| Lubrication | Central Lubrication |
| Jacquard | Electronic Lifebond 640, 960, 1344, 1408, 2688, 5376 |
| Jacquard Transmission | Synchronous Chain Drive / Shaft Drive / Belt Drive |
| Hardness | Carben Fibre With Spring / Spandox Pull Down, Junction Covered By. |
| Power | 1.5kw to 5.5kw as per width & Type of Jacquards. |
| Warp Beam | Flange Beam Pipe |
| Fabric Storage | UP to 400mm Dia. |
| Selvage | Leno Type With Bobbin Stand / Tuck in Device |
| Selvage Cutter | Thermal (Mechanical Optical) |
| Temple | Ring Type Cylinder With Pin |
Due to Continuous Development Program, specifications, dimensions or description may be changed without prior notice.
