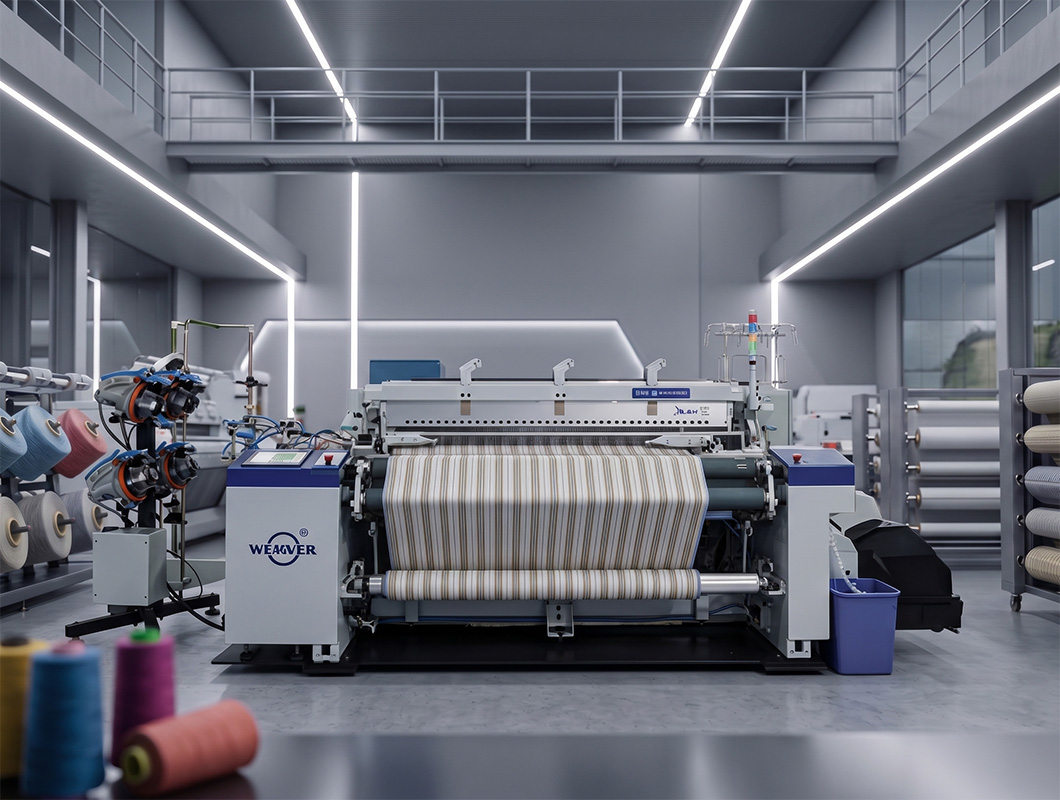

WT9100 High Speed Air Jet Loom delivers fast, efficient weaving with precise weft insertion, stable operation, superior fabric quality, and reduced production downtime.
The WT9100 combines direct drive, electronic control and advanced weft insertion with multiple shedding options for diverse weaving requirements.
Source specifications highlight programmable drive control, electronic let-off and take-up, multi-nozzle insertion, automated monitoring and multiple shedding configurations.
Direct drive main motor with magnetic brake control and programmable start.
Crank, positive/negative cam, dobby and Jacquard shedding options.
Servo-based let-off and take-up with automatic control and monitoring.
| Reed Space Nominal | 190, 210, 230, 250, 280, 340, 360 cm | — |
|---|---|---|
| Useful Range | Reduction from nominal 0–60 cm (190–250 cm); 0–80 cm (280–360 cm) | — |
| Yarn Range | Spun Ne100 ~ Ne2.2; Filament 56 dtex ~ 1350 dtex | — |
| Weft Selection | 2-color, 4-color, 6-color, 8-color | 8-color |
| Drive | Direct drive main motor; magnetic brake; programmable start; built-in inverter | Speed can change during weaving |
| Power | 2.2 kW crank; 3.0 kW cam; 3.7 kW dobby; 5.5–7.5 kW Jacquard | Push button operated by both hands |
| Weft Accumulator | Electronic FDP weft accumulator | ABS control, air ballon breaker |
| Weft Insertion | Main nozzle + sub nozzle combined system; automatic insertion control; 1st pick control | Stretch nozzle; independent timing auxiliary nozzle; energy-saving double nozzle valve |
| Shedding | Crank 4 shafts; negative cam 8 shafts max; positive cam 10 shafts max; dobby 16 shafts max; Jacquard shedding | Manual leveling (positive cam) |
| Let-Off | Electronic let-off by servo motor; double roller electronic let-off with auto reverse | Up & down beam / twin beam; flange Φ914 mm, Φ1000 mm; flange Φ800 mm |
| Take-Up | Electronic take-up by servo motor; pick density standard 15–300 picks; weaving length display | Batching motion 720 mm; max take-up Φ600 / Φ520 mm by shedding type |
| Beating | Crank type beating, multiple sley sword beating | 4 Link narrow / 6 Links wide |
| Selvage | Planetary gear leno selvage; center leno device | Electronic planetary gear leno |
| Lubrication | Oil bath system for main driving parts; centralized lubrication | Automatic centralized lubrication |
| Auto-Stop Motion | Photoelectric double weft sensor; electronic 6-row warp contact bar; automatic stop for leno/waste yarn break | Bobbin yarn break sensor; anti-hand beating sensor |
| Control & Automatic | Computer control for data setting, monitoring, self-diagnosis and interface; automatic pick finding | AFC, AJC, centralized networked monitor; memory card; jet automatic control |
